Introduction

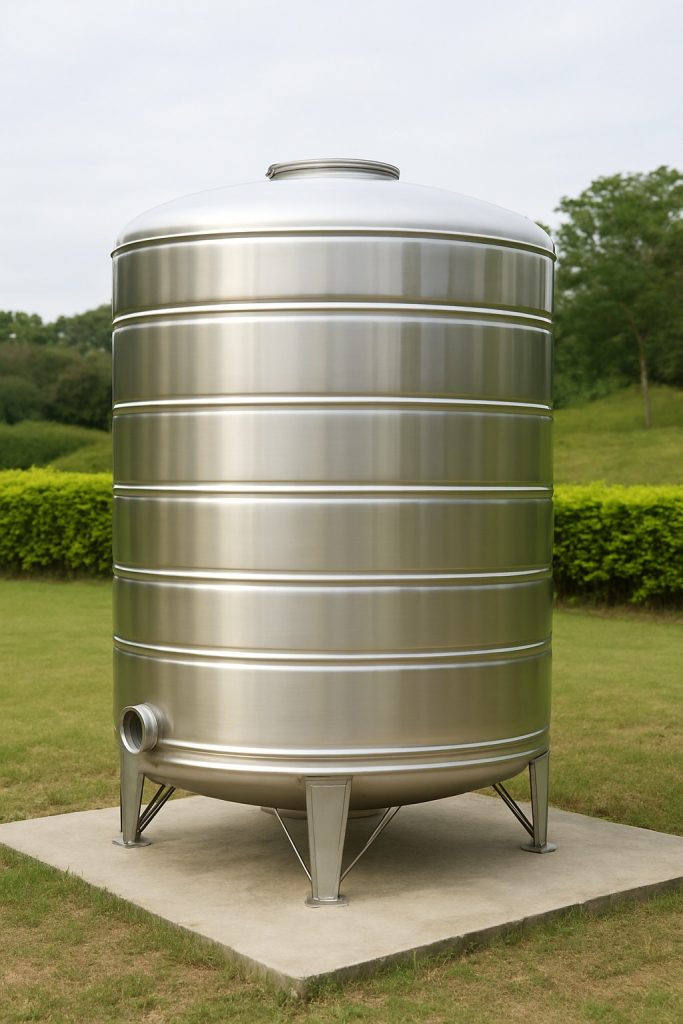

Stainless steel water tanks are widely used in residential, commercial, and industrial applications thanks to their durability, hygiene, corrosion resistance, and long service life. Compared to plastic or concrete tanks, stainless steel tanks provide superior water quality protection and can withstand harsh environmental conditions.
But how exactly are these tanks made? Behind each finished product lies a carefully engineered production process that combines advanced materials, precision fabrication techniques, and rigorous quality control.
In this article, we’ll explore the entire production cycle of stainless steel water tanks, step by step—from raw material preparation to forming, welding, surface treatment, assembly, and final testing. By the end, you’ll have a clear picture of what goes into making a stainless steel water tank that meets international standards.
1. Raw Material Selection and Preparation
The production journey begins with choosing the right grade of stainless steel. The most common grades used are:
-
304 stainless steel: Excellent corrosion resistance and hygienic properties; widely used in household and commercial tanks.
-
316 stainless steel: Enhanced resistance to chlorides and harsh environments; suitable for coastal, marine, and industrial applications.
-
201 stainless steel: A cost-effective option with moderate corrosion resistance, used in budget-conscious markets.
Key Material Considerations
-
Thickness: Tank panels typically range between 0.6 mm and 3 mm, depending on the tank’s size and pressure requirements.
-
Certification: Raw steel sheets must meet international standards (ASTM, JIS, or EN) for quality assurance.
-
Surface Finish: No.1, 2B, or BA finishes are selected depending on the final aesthetic and functional needs.
Once selected, the steel sheets are inspected for surface defects such as scratches, rust spots, or dents. The sheets are then cleaned and cut to manageable sizes for further processing.
2. Cutting and Shaping
After preparation, the stainless steel sheets move into the cutting phase.
Methods of Cutting
-
Laser cutting: Highly precise, suitable for intricate shapes and minimizing waste.
-
Plasma cutting: Fast and efficient for thicker sheets.
-
Shearing machines: Common for straight cuts on thin sheets.
The sheets are cut into panels, domes, or cylindrical blanks, depending on the tank design.
Shaping
-
Press forming: Hydraulic presses shape panels or domes into curved sections.
-
Rolling machines: Used to roll sheets into cylindrical or conical forms.
-
Punching: Creates holes for inlets, outlets, manholes, and accessories.
At this stage, the raw stainless steel transforms into the basic building blocks of the water tank.
3. Welding and Fabrication
One of the most critical steps is joining the cut and shaped pieces into a single watertight structure.
Welding Techniques
-
TIG welding (Tungsten Inert Gas): Preferred for stainless steel due to precision and clean welds.
-
MIG welding (Metal Inert Gas): Used for thicker sections and faster production.
-
Spot welding: Applied to sheet-to-sheet joining in modular panel tanks.
Welding Process
-
Bottom Assembly: The base panels are aligned and welded.
-
Sidewalls: Cylindrical or modular panels are welded vertically.
-
Top Cover: Dome or flat top is attached.
-
Accessories: Nozzles, flanges, and manholes are welded onto designated spots.
Quality Control During Welding
-
Weld seams are inspected visually for cracks, porosity, and unevenness.
-
Non-destructive testing (NDT), such as dye penetrant inspection, ensures weld integrity.
The goal is to create a structurally sound and leak-proof shell that forms the core of the tank.
4. Surface Treatment and Finishing
After welding, the tank undergoes surface treatment to restore stainless steel’s corrosion resistance and enhance appearance.
Steps in Surface Finishing
-
Grinding and Polishing: Weld seams are smoothed to ensure hygiene and aesthetics.
-
Pickling and Passivation: Chemical treatment removes oxides and contaminants, rebuilding the protective chromium oxide layer.
-
Polishing Options:
-
Matte finish for industrial use.
-
Mirror finish for decorative or architectural applications.
-
Surface finishing not only ensures a clean appearance but also enhances the tank’s durability in contact with water.
5. Assembly and Reinforcement
Depending on the design, tanks may be:
-
Modular panel tanks: Assembled on-site by bolting or welding prefabricated panels.
-
Cylindrical welded tanks: Fully fabricated in the factory and delivered as a complete unit.
Reinforcement Structures
-
Stiffening rings: Strengthen large cylindrical tanks.
-
Support legs or frames: Hold elevated tanks in place.
-
Internal bracing: Prevents panel deformation under water pressure.
During assembly, gaskets and sealing materials are applied to ensure leak-tight connections.
6. Cleaning and Sterilization
Before testing, the tank is thoroughly cleaned to remove contaminants such as welding residues, oils, or chemicals.
-
High-pressure water jet cleaning.
-
Steam cleaning for sterilization.
-
Chemical rinsing (food-grade solutions) for tanks used in potable water or food industries.
This step ensures that the tank is safe and hygienic for water storage.
7. Testing and Quality Control
Every tank must undergo rigorous testing before being approved for delivery.
Testing Methods
-
Hydrostatic Test: Filling the tank with water to check for leaks and structural performance.
-
Air Pressure Test: For smaller tanks, compressed air and soap solution detect leaks.
-
Ultrasonic Testing: Confirms material thickness and weld penetration.
-
Corrosion Resistance Test: Salt spray or chemical exposure tests for specialized applications.
Certification
Tanks are certified according to standards such as ISO 9001, NSF, WRAS, or ASME, depending on their market and application.
8. Painting and External Coating (Optional)
Although stainless steel does not require painting, some manufacturers apply protective or decorative coatings:
-
Epoxy paint for additional corrosion resistance in industrial environments.
-
Thermal insulation layers for tanks used in hot or outdoor applications.
-
Color coatings for aesthetic integration in architectural projects.
9. Packaging and Delivery
Once approved, tanks are prepared for shipment:
-
Small tanks: Packaged with protective film, foam, or wooden crates.
-
Large tanks: Transported in modular form for assembly at the site.
-
Documentation: Each tank is accompanied by inspection reports, certificates, and user manuals.
10. Installation and Commissioning
For end-users, the production process continues with installation:
-
Tanks are positioned on concrete foundations or structural platforms.
-
Inlets, outlets, overflow, and drainage systems are connected.
-
For panel tanks, assembly crews bolt or weld panels on-site.
-
Finally, tanks undergo commissioning tests to verify proper performance before full operation.
11. Sustainability and Recycling
Stainless steel water tanks are highly sustainable:
-
Recyclability: Stainless steel is 100% recyclable without loss of quality.
-
Longevity: Tanks can last 20–40 years with minimal maintenance.
-
Resource efficiency: Compared to plastic tanks, they reduce long-term replacement waste.
Many manufacturers also use scrap stainless steel in production to lower environmental impact.
Conclusion
The production of stainless steel water tanks is a complex, multi-step process that combines metallurgy, precision fabrication, and strict quality control. From selecting the right stainless steel grade to cutting, forming, welding, polishing, and final testing, each stage plays a crucial role in ensuring that the finished tank is safe, durable, and reliable.
-
Enameled steel tanks may offer color and affordability, but stainless steel tanks remain the gold standard in water storage.
-
Between 304 and 316 stainless steel, the choice depends on the intended environment—304 for general use and 316 for harsher, chloride-rich conditions.
By understanding the manufacturing process, users and buyers gain greater confidence in the product’s quality and can make informed decisions when selecting the best solution for their needs.
Stainless steel water tanks are more than just storage vessels—they are engineered products that protect one of our most vital resources: clean water.
