Bronze has earned its place in precision manufacturing for one simple reason: it delivers a rare blend of strength, wear resistance, and corrosion protection while still machining cleanly. From bushings that run for years without seizing to electrical contacts that keep their spring, bronze alloys cover a wide range of functional needs—and CNC machining unlocks their full potential with tight tolerances and repeatable quality.
This guide reorganizes the essentials into a clear, step-by-step overview: what bronze CNC machining is, how it works, where it shines (and where it doesn’t), which grades to pick, how to finish parts, and how to lower cost without compromising performance. We’ll also share why Kingsmg is a strong partner for bronze CNC projects.
What Is Bronze CNC Machining?
Bronze is a family of copper-based alloys primarily alloyed with tin and, depending on the grade, aluminum, silicon, phosphorus, lead, nickel, manganese, or zinc. Those additions tune properties like strength, hardness, lubricity, and corrosion resistance.
Bronze CNC machining uses computer-controlled lathes and mills to turn, mill, drill, tap, and engrave bronze stock into finished components with consistent tolerances. Because certain bronzes combine natural lubricity with good machinability (especially leaded tin bronzes such as C93200 / SAE 660), they are ideal for precision wear parts like bearings, bushings, gears, and valve components, as well as electrical and marine hardware.
The Bronze CNC Machining Process
-
CAD & DFM
Parts start from a 3D model. Good workflows include design-for-manufacturability checks for minimum radii, wall thickness, tool reach, threads, and tolerance strategy. -
CAM Programming
Toolpaths are generated for turning and/or milling operations. For bronze, strategies prioritize chip evacuation, moderate step-downs, and tool engagement that avoids rubbing (which can cause work hardening on some grades). -
Material Prep
Stock is cut to length, edges are deburred, and identification (heat/lot) is recorded for traceability—especially important for regulated industries. -
Setup & Workholding
Standardized jaws/soft jaws and fixtures reduce setup time. For long bushings, mandrels or expanding arbors control concentricity. -
CNC Operations
-
Turning: Ideal for bushings, sleeves, and rings.
-
Milling: Pockets, slots, bolt patterns, prismatic housings.
-
Drilling/Tapping: Coarse or fine threads; thread milling for tight tolerances or blind holes.
-
5-Axis Machining: Complex ports and undercuts with fewer setups.
-
Broaching/Hobbing (secondary): For internal keyways or gear teeth when required.
-
-
In-Process Control
Touch probing and SPC (statistical process control) catch drift early; bronze’s thermal conductivity helps stabilize dimensions by shedding heat. -
Finishing
Deburring, tumbling, bead blasting, polishing, or patination (details below). -
Inspection & Documentation
Critical dimensions, surface finish, and material certs are verified; packaging prevents denting or scratching of soft surfaces.
Advantages of Bronze CNC Machining
-
Excellent Tribology (Low Friction): Many bronzes run against steels with minimal scuffing. Leaded tin bronzes can form a microscopic lubricating film, ideal for bearings and sliding components.
-
Corrosion Resistance: Copper-rich alloys hold up in moist, saline, and industrial environments; marine bronzes resist seawater attack.
-
Good Machinability: Certain grades cut cleanly with modest tool wear, yielding sharp edges and tight tolerances.
-
Thermal & Electrical Conductivity: Helps dissipate heat during machining and benefits end-use applications (e.g., contacts, terminals).
-
Damping Capacity: Better vibration damping than many steels, valuable for gears and motion parts.
-
Dimensional Stability in Service: Properly specified bronzes maintain clearances across a wide operating temperature range.
Disadvantages to Consider
-
Material Cost: Copper content makes bronze pricier than many steels or aluminums. Optimize design and alloy choice to offset.
-
Tool Wear on Certain Grades: While leaded bronzes are friendly to tools, aluminum bronze and manganese bronze are tougher and can shorten tool life without the right tooling and cutting parameters.
-
Heat Generation if Rubbing: Bronze dislikes rubbing cuts; blunt tools or overly light chip loads can generate heat and degrade finish.
-
Complex Feature Limits: Extremely thin walls or long, slender features may chatter or deform—design and fixturing must account for this.

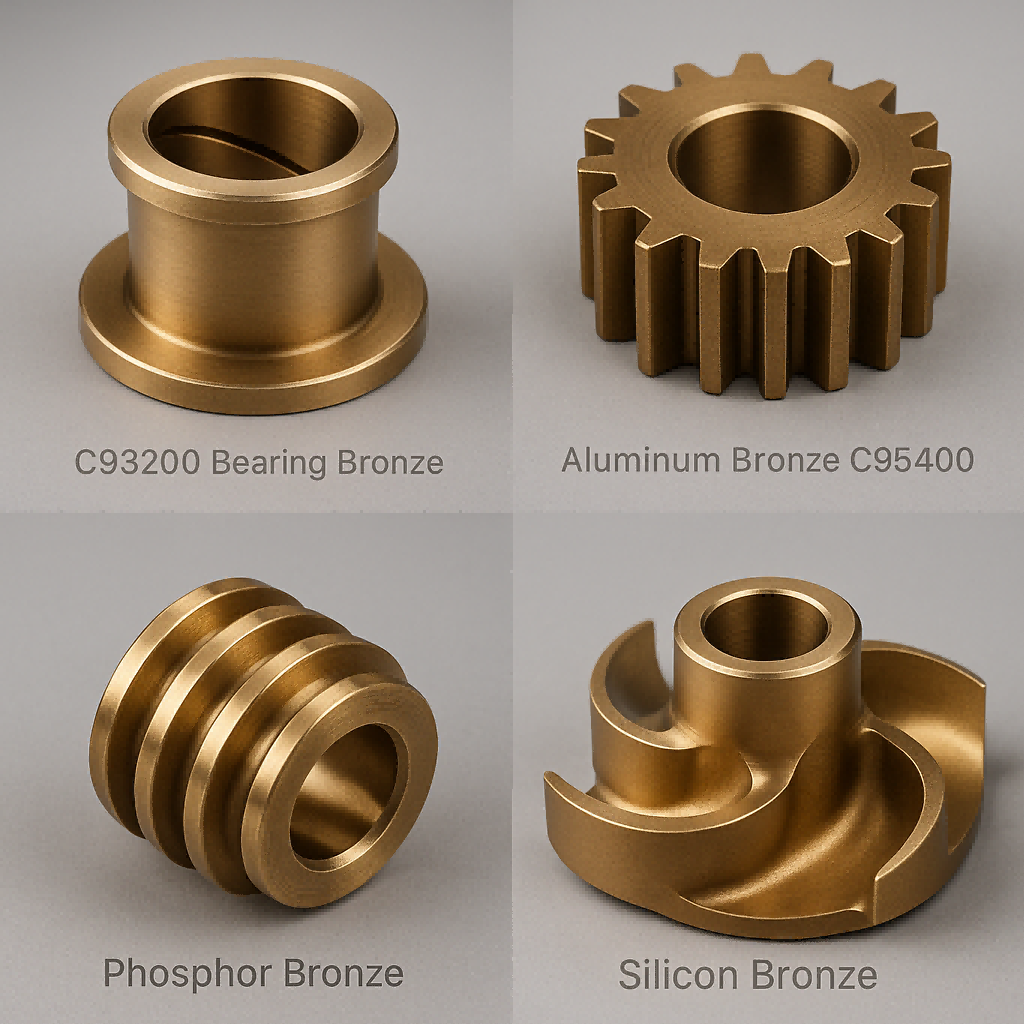

What Bronze Types Are Available for CNC Machining?
Choose the alloy to match your functional requirements:
-
C93200 (SAE 660) Bearing Bronze – Leaded Tin Bronze
The workhorse for bushings and bearings. Balances strength, lubricity, and machinability; performs well in boundary lubrication conditions. -
PB1 / Phosphor Bronze (e.g., C51000, C52100, C54400)
Tin plus a small amount of phosphorus improves wear resistance, fatigue strength, and spring properties. Great for springs, washers, electrical connectors, worm wheels. -
Aluminum Bronze (e.g., C95400, C95500, C63000)
High strength and outstanding corrosion resistance in seawater and chlorides. Preferred for pump/valve bodies, marine hardware, aerospace wear parts. Harder to machine—requires sharp, rigid setups. -
Silicon Bronze (e.g., C65500, C65100)
Strong, corrosion-resistant, and aesthetically pleasing. Good for architectural hardware, fasteners, pump parts; weldable. -
Manganese Bronze
Very strong and shock-resistant with excellent seawater resistance. Common for propellers, shafts, and high-load hardware. -
Bismuth Bronze
A lead-free alternative with good machinability and polishability for applications restricting lead. -
Cupronickel (Copper-Nickel)
Not strictly “bronze,” but often grouped. Exceptional seawater and biofouling resistance for marine piping, heat exchangers, coins.
Selection tip: For general bushings, start with C93200. For high loads or corrosive seawater, consider aluminum bronze. For spring/ electrical function, look to phosphor bronze.
Surface Finishes for Bronze CNC Parts
-
As-Machined (Standard)
Clean toolpath finish; typical Ra depends on process. Economical and functional for most internal bearing surfaces when tolerances control fit. -
Vibratory Tumbling / Deburring
Smooths edges and produces a uniform satin; excellent for hand-safe parts. -
Bead Blasting
Even matte texture that hides minor machining marks. Useful for housings and visible hardware. -
Mechanical Polishing / Buffing
From brushed to mirror finish for decorative components and low-friction mating surfaces. -
Chemical Patination
Controlled surface oxidation to achieve browns, blacks, or verdigris tones for architectural and artistic parts. -
Electroplating (Tin, Nickel, Silver)
Enhances solderability, conductivity, or wear resistance—common on phosphor bronze electrical parts. -
Clear Coat / Lacquer
Preserves the desired tone and slows tarnish for display or consumer products.
(Note: Anodizing is for aluminum, not bronze.)
Cost-Saving Design Tips for Bronze CNC Machining
-
Choose the Right Alloy First
Don’t over-specify. C93200 may meet most bearing needs at lower cost than aluminum bronze. -
Use Practical Tolerances
Put tight tolerances where function requires them (fits, sealing faces). Relax non-critical features to reduce cycle time and inspection cost. -
Give Tools Room to Work
-
Internal corner radii ≥ tool radius (e.g., 3 mm cutter → ≥ 3 mm fillet).
-
Keep slot/pocket depth to ≤ 4–6× tool diameter when possible.
-
-
Design for Two–Three Setups
Consolidate reachable faces to limit custom fixturing and re-indicating. -
Avoid Knife-Edges and Ultra-Thin Walls
Bronze can burr or distort at edges under load; add fillets and sensible wall thickness. -
Standard Threads & Features
Use common metric/UNC/UNF sizes and standard depths; thread milling as needed for tight positional accuracy. -
Specify Finishes Wisely
Satin tumbling may achieve the aesthetic at a fraction of the time of mirror polishing. -
Leverage Stock Sizes
Picking bar/plate sizes close to net dimensions reduces waste and machining time. -
Plan for Assembly
Include chamfers and lead-ins on press fits and bushing IDs/ODs to speed installation and reduce scrap.
Applications of Bronze Machined Parts
-
Bearings & Bushings: Sleeve, flanged, and thrust types for industrial equipment, automotive suspensions, conveyors, and agricultural machinery.
-
Gears & Worm Wheels: Low noise and good wear properties in mixed-material gear sets.
-
Valves, Pumps & Marine Hardware: Corrosion-resistant housings, impellers, seats, and stems.
-
Electrical Components: Phosphor bronze springs, clips, terminals, and connectors.
-
Fasteners & Fittings: Nuts, inserts, threaded couplers where corrosion or appearance matters.
-
Instrumentation & Medical: Non-sparking tools, precise bushings, and components requiring clean finishes.
-
Architectural & Consumer: Hinges, handles, decorative hardware with brushed or patinated surfaces.
Kingsmg: Your Go-To Partner for Bronze CNC Projects
At Kingsmg, we combine materials expertise with a digitally orchestrated machining workflow to deliver bronze parts quickly and consistently.
Why teams choose Kingsmg for bronze:
-
Alloy Coverage & Guidance
From C93200 bearings to aluminum bronze C95400/C95500 and phosphor bronze grades, we help you match alloy to load, environment, and budget. -
Tight Tolerances, Repeatably
In-process probing and SPC keep bores, concentricity, and runout in spec—critical for rotating assemblies. -
Surface Finishes That Fit
From functional bearing bores to decorative patinas and mirror polishes, our finishing cells deliver the look and performance you need. -
DFM-Driven Quotes
Upload CAD to receive fast pricing with actionable feedback on radii, wall thickness, threads, and finish trade-offs. -
Scalable Capacity
Prototype to bridge production with the same process controls, ensuring your reorders run as smoothly as your first articles.
Ready to spec a bronze part? Share your model, alloy preference (or application), tolerances, and finish. We’ll help you optimize for performance and cost.
Conclusion
Bronze is uniquely positioned for parts that must slide, resist corrosion, conduct heat or electricity, and still machine precisely. With the right grade and a machining partner that understands the nuances—from chip control to finishing—bronze delivers reliable performance across industrial, marine, electrical, and consumer applications.
Focus on fit-for-purpose alloy selection, practical tolerances, tool-friendly geometry, and finish discipline. Pair that with a digital manufacturer like Kingsmg, and you’ll get durable bronze parts on time, on budget, and built to last.
FAQs
Is bronze easy to machine?
Many bronzes—especially leaded tin bronze (C93200 / SAE 660) and several phosphor bronzes—machine very well. Harder grades like aluminum bronze require sharper tools, rigid setups, and tuned parameters but still deliver excellent results with the right process.
Bronze vs. brass: which is more machinable?
Free-machining brass (e.g., C360) is generally easier to machine than most bronzes. However, leaded bronzes strike a strong balance of machinability and in-service performance (lubricity, wear, corrosion resistance) that brass can’t always match.
What are the best bronze grades for CNC?
For general bearings, C93200 (SAE 660) is the default. For higher strength and seawater resistance, select aluminum bronze (C95400/C95500/C63000). For springs/electrical, use phosphor bronze (C51000/C52100/C54400). For marine propulsive hardware or high-load bolts, consider manganese bronze.
What finishes work best on bronze?
Functional surfaces often use as-machined or tumbled finishes. For aesthetics, choose bead-blast, brushed, polished, patinated, or clear-coated. For electrical parts, tin or nickel plating is common.
How do I lower cost on bronze CNC parts?
Pick the simplest suitable alloy, keep tolerances targeted, add internal radii, avoid knife-edges, design for two–three setups, use standard threads, and choose efficient finishes. Your Kingsmg engineer can help you trade off cost, lead time, and performance.
